Drive and machine brake

Drive and machine brake
Drive and machine brake
Product Code : 110
Product Description

With the help of our professionals, we are instrumental in putting forth top grade Drive and machine brake. The offered product is manufactured under the strict guidance off deft professionals by utilizing premium quality basic materials. This product includes clutch bolt, cam drive shaft, selector axle etc. available in customized specifications as per clients’ requirements, the provided Drive and machine brake is ideal for stopping as well as starting purposes.

Key features:

  • Suitable for textile industrial application
  • Compact design
  • Strongest
  • Lightweight and robust design

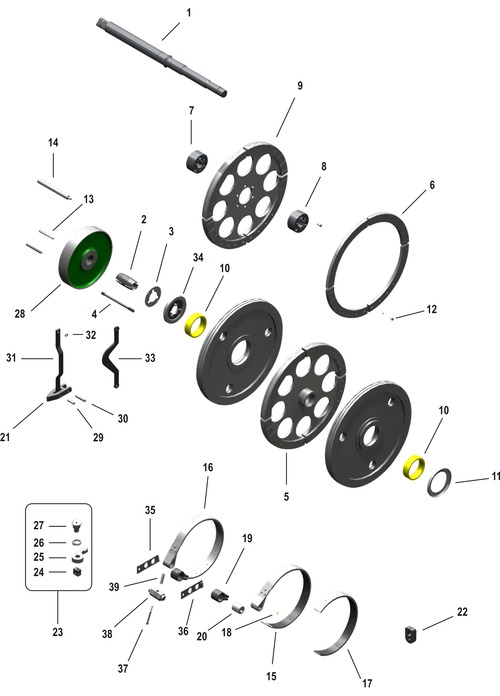

ID: TK No: ART No: Designation:
1 TK101 911803034 Drive Shaft excluding bearing
1 TK102 911103156 Drive Shaft excluding bearing
1 TK103 911103260 Drive Shaft excluding bearing
2 TK104 911303082 Taper Bush
2 TK105 911103154 Bush
3 TK106 911303327 Wear Ring for pressure Disc
4 TK107 911103335 Bolt
5 TK108 912503073 Clutch Cross D92
5 TK109 912503113 Clutch Cross D92
5 TK110 912503097 Clutch Cross D80
5 TK111 912503098 Clutch Cross D92
5 TK112 911803102 Clutch Cross D92
6 TK113 911203185 Clutch Lining
6 TK114 911703019 Clutch Segment set 8 pcs.
7 TK115 911103397 Clamping ring inside
8 TK116 911103398 Clamping ring outside
9 TK117 912503061 Coupling Disc D92
9 TK118 911803101 Coupling Disc D92
10 TK119 912103278 Bush D92x103x30
10 TK120 912103198 Bush D80X92X30
11 TK121 911303281 Disc
11 TK122 911303282 Plate Disc
12 TK123 911200925 Hollow rivet D4,9X10,7
13 TK124 911303336 Pin
13 TK157 911303441 Pin 12x78,8
13 TK125 911203112 Pin
14 TK126 911203123 Stud
15 TK127 911804028 Brake Band
16 TK128 911804027 Brake Band with clamping piece
16 TK129 911804055 Br.Band with clamp.piece no rivet
17 TK130 911304068 Brake linning with rivet holes
17 TK131
Br. linning with channels,no rivet
18 TK132 911200274 Hollow rivet
19 TK133 911804026 Clamp. piece with eccentric bush
19 TK134 912504021 Clamp.piece with centered bush
20 TK135 911704006 Eccentric bush for Clamp.piece
20 TK136 912104215 Bush for Clamping piece
21 TK137 911103333 Clutch lever
22 TK138 911303163 Holding Bracket
23 TK139 911803072 Hand Wheel Stop
24 TK140 911303489 Clamping piece
25 TK141 911303398 Locking lever
26 TK142 911303491 Torsion spring
27 TK143 911303437 Bearing Bush
28 TK144 912503041 Brake Drum without angle disc
29 TK145 921798300 Pin 12x40
30 TK146 911203134 Pin 12x58
31 TK147 911803062 Bar
32 TK148 912103332 Bush 12,1/15,22x8
33 TK149 911803117 CONTROL BAR
34 TK151 911803064 Pressure Disc
35 TK152 911204198 Front link
36 TK153 911204108 Rear link
37 TK154 921337000 Screw m10x80
38 TK155 911104106 Stud
39 TK156 927711830 Pressure Spring
