Conveyor Drive

Get a Price/Quote

Product Details:

Surface Finish Painted/Coated
NO. Of Hole 4
Size Standard/Custom as per requirement
Part Type Drive Motor Unit
Diameter As per model specification
Tensile Strength Up to 600 MPa
Capacity Varies as per specification
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Conveyor Drive Product Specifications

Thread Type Metric
Material Mild Steel
Part Type Drive Motor Unit
Diameter As per model specification
Mounting Type Flange/Foot Mounted
Noise Level Low
Tensile Strength Up to 600 MPa
Textile Machine Type Conveyor System
Features Corrosion resistant, Durable, High efficiency
Usage Material Handling
Size Standard/Custom as per requirement
Thermal Conductivity 50 W/(mK)
Automation Grade Automatic
Speed Up to 1440 rpm
Surface Finish Painted/Coated
NO. Of Hole 4
Hardness 50-60 HRC
Dimension (L*W*H) 650 x 230 x 270 mm (typical)
Weight 38 kg (approx)
Spare/Component Type Drive Unit
Capacity Varies as per specification
Product Type Conveyor Drive

Frequency 50/60 Hz
Rotation Direction Reversible
Drive Ratio Shaft-mounted ratios as per request
Insulation Class F
Power Consumption 0.75 kW
Enclosure Type Totally Enclosed Fan Cooled (TEFC)
Voltage 220/380 V
Lubrication Type Grease or Oil Lubricated
Ambient Temperature Range -10°C to 50°C
Cooling Method Fan cooled
Protection Class IP55

Product Description

We are bringing forth for clients an excellent grade range of Conveyor Drive that is widely demanded in assembly of automotive, electrical, agricultural and various equipment. The provided drive is a part of mechanical handling equipment that moves materials one place to another. This drive is manufactured as per set industry norms using top-grade raw materials by adroit professionals. Apart from this, the offered Conveyor Drive can be availed from us at reasonable rates by our prestigious clients.

Key points:

Long bearing life
Low noise and vibration
High thermal capacity
Lubrication optimised for low speed

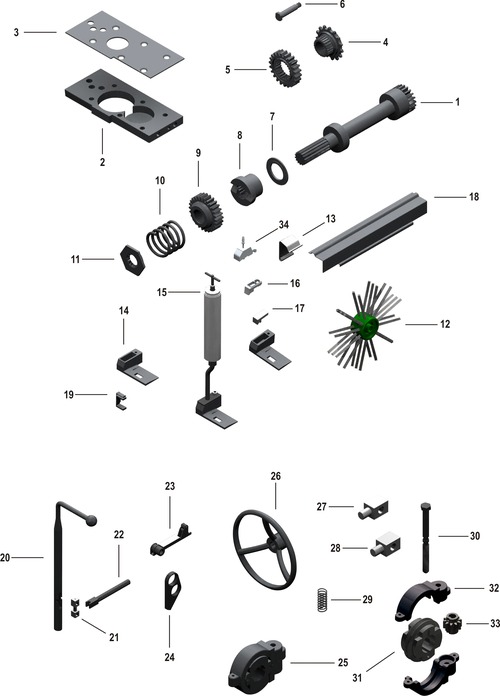

ID:	TK No:	ART No:	Designation:
1	TK1401	911131172	Pinion Shaft
2	TK1402	911131185	Plate
3	TK1403	911131412	Cover Plate
4	TK1404	911131121	Sprocket Z:15
5	TK1405	911131123	Gear Wheel Z::24
6	TK1406	911131118	Axle
7	TK1407	911331136	Disc 25/51,35x3
8	TK1408	911131133	Coupling
9	TK1409	911331124	Coupling Wheel Z:25
10	TK1410	911231139	Spring
11	TK1411	911131175	Spring cap
12	TK1412	911255325	Perlon brush
13	TK1413	911231145	Clamping piece
13	TK1424		Clamping piece long
13	TK1425		Clamping piece long narrow
14	TK1414	911316447	Greasing body
15	TK1415		Greasing Part
16	TK1416	911816006	Grease Felt D1 with cap
16	TK1417	911816007	Grease Felt D2 with cap
17	TK1419	911316771	Grease Felt
18	TK1420	911231162	Conveyor cover
18	TK1421	911331116	Conveyor cover
18	TK1422	911331548	Conveyor cover
19	TK1423	911316803	Stop Piece D1 D12
19	TK1426	911316806	Stop Piece D2
20	TK2411	912547024	Eccentric shaft
21	TK2412	911147172	Axle
22	TK2413	911147132	Stud
23	TK2405	911804006	Ratchet
23	TK2473	911804042	Ratchet
24	TK2404	911304097	Locking link
25	TK2426	911201925	Lower worm drive complete
26	TK2425	911110194	Hand wheel
27	TK2406	911111217	Pivot stud
28	TK2407	911111218	Pivot stud
29	TK2408	911213175	Spring
30	TK2409	911311052	Special screw
31	TK2470		Worm
32	TK2471		Worm COVER 2 PCS.
33	TK2472		Pinion gear
34	TK1418	911316897	Felt housing
34	TK1427		Felt housing with felt p7100
34	TK1428		Felt

Adaptable Performance for Industrial Automation

Designed to fit both standard and custom requirements, the conveyor drive motor unit offers flexibility with flange or foot mounting and shaft-mounted ratios per your needs. The reversible, low-noise operation ensures seamless integration within conveyor systems for textile and material handling industries.

Rugged Construction, Reliable Operation

Built from high-strength mild steel and finished for corrosion resistance, this drive unit is engineered for longevity. It excels in demanding conditions, with a tensile strength up to 600 MPa, hardness of 50-60 HRC, and a totally enclosed fan cooled (TEFC) enclosure for protection and heat management.

FAQs of Conveyor Drive:

Q: How is the conveyor drive installed for different conveyor systems?

A: The conveyor drive can be mounted using either flange or foot-mount options, allowing for versatile integration into varying conveyor system designs. The shaft-mounted ratios and metric thread types ensure compatibility with standard industry requirements.

Q: What are the main benefits of using this conveyor drive motor unit?

A: Key benefits include high efficiency, corrosion resistance, low noise emission, and reliable performance even in harsh environments. Its automatic operation and robust construction support long-term, maintenance-friendly use in material handling applications.

Q: When should I choose grease vs. oil lubrication for the unit?

A: The choice between grease and oil lubrication depends on operating conditions, such as load and ambient temperature. Oil lubrication is suited for continuous high-speed operations, while grease works well for moderate loads and intermittent use, ensuring optimal wear protection and longevity.

Q: Where can this conveyor drive be used most effectively?

A: This drive is ideal for use in automated conveyor systems across textile processing, packaging, and bulk material handling industries. Its adaptability to varying sizes, mounting types, and capacity specifications makes it suitable for facilities requiring dependable and consistent product flow.

Q: What processes does the drive support in material handling applications?

A: The drive powers conveyor belts or chains, enabling automated movement of materials within a production or sorting line. With speed control up to 1440 rpm and customizable ratios, it ensures smooth and efficient movement, minimizing downtime and manual effort.

Q: How does the IP55 protection class benefit operation?

A: IP55 protection safeguards the drive against dust ingress and water jets, making it well-suited for challenging industrial environments where exposure to contaminants and moisture can occur, ultimately extending the lifespan of the motor unit.

Q: What features ensure safety and durability of the conveyor drive?

A: Safety and durability are ensured through a totally enclosed fan cooled (TEFC) design, reversible rotation, high tensile mild steel construction, and robust surface coating, all contributing to minimized wear, consistent operation, and reduced risk of failure during prolonged use.
