MS Projectile Feeder

Get a Price/Quote

Product Details:

Surface Finish Polished
Tensile Strength Up to 370 MPa
Features Corrosion Resistant, Robust Design
NO. Of Hole 6
Thermal Conductivity 43 W/mK
Capacity High
Noise Level Low
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

MS Projectile Feeder Product Specifications

Hardness 50-60 HRC
Size Standard
Noise Level Low
Automation Grade Manual
Dimension (L*W*H) 185 mm x 75 mm x 50 mm
Capacity High
Diameter Standard
Part Type Feeder
Thermal Conductivity 43 W/mK
Spare/Component Type Projectile Feeder
Product Type Projectile Feeder
Features Corrosion Resistant, Robust Design
NO. Of Hole 6
Surface Finish Polished
Mounting Type Bolt Mount
Speed Up to 1000 rpm
Tensile Strength Up to 370 MPa
Weight 1.8 kg
Usage Textile Looms
Material MS (Mild Steel)
Textile Machine Type Projectile Loom

Corrosion Protection Yes
Shape Rectangular
Compatibility Suitable for Universal Projectile Looms
Maintenance Minimal
Precision Level High Precision Engineering
Edge Type Smooth, Burr Free
Color Silver Grey
Processing Type CNC Machined
Lubrication Requirement Low
Operating Temperature -10 to 90°C
Application Industry Textile Machinery

Product Description

We are an eminent entity, working with diligence in supplying optimum quality MS Projectile Feeder. It is manufactured using top-grade mild steel as per set industry standards with the aid of advanced machines under the observation of adroit experts. This special kind of feeder is best to be used as a component of projectile feeder. Known for its longer life and rust free nature, the offered MS Projectile Feeder can be availed at economic rates from us.

Key points:

High strength
Long life
Supreme finish
Accurate dimensions

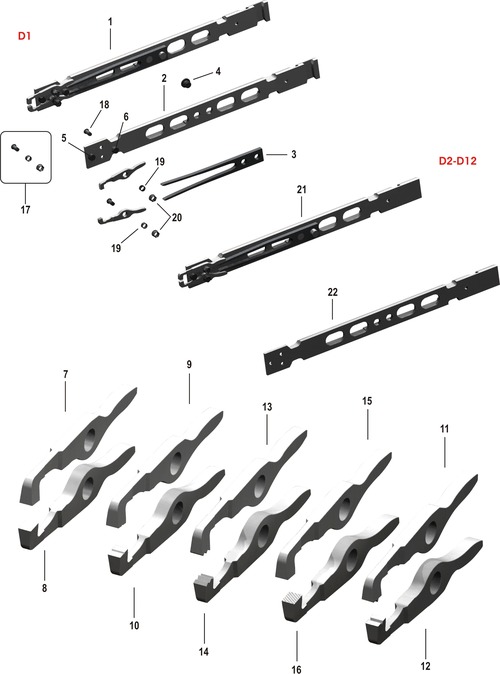

ID:	TK No:	ART No:	Designation:
1	TK601	911819236	P.Feeder Smooth Ms D1 911819201
1	TK602	911819234	P.Feeder with groove Ms D1
1	TK603		Proj.Feeder V TYPE Ms D1
1	TK604	911819239	P.Feeder Ms D1 diamond knurled
1	TK639	911819133	P.Feeder Smooth MW2 D1
1	TK640	911819182	P.Feeder with groove MW2 D1
2	TK605	911819409	RH BAR D1
2	TK641	911819106	RH BAR D1 WM 2
3	TK607	911319285	Gripper Spring
4	TK608	911219183	Centering screw
5	TK609	911219233	Stop Rivet
6	TK610	911319009	Stop Rivet long
7	TK611	911319789	Up. gripper smooth without coun.
7	TK612	911319119	Upper gripper smooth D2
8	TK613	911319791	Lower gripp.smooth without coun.
8	TK614	911319121	Lower gripper smooth D2
9	TK615	911319787	Up.grip. With groove without coun.
10	TK616	911319788	Lower grip. Groove without coun.
11	TK617		Upper gripper V type without coun
12	TK618		Lower gripp. V type without coun
13	TK619	911319325	Upper gripper grooved D2-D12
14	TK620	911319324	Lower gripper grooved D2-D12
15	TK621	911319792	Upper gripper D1 Knurled
15	TK622	911319474	Upper gripper D2 knurled
15	TK632
16	TK623	911319793	Lower gripper D1 knurled
16	TK624	911319475	Lower gripper D2 Knurled
16	TK633
17	TK625	911819124	Special bol with bush
18	TK626	911319238	Special screw
19	TK627	911319247	Bush D2,8/4X2,56
20	TK628	911319239	Special nut M2,6X0,35
21	TK629	911819341	P.Feeder smooth D2-D12 Compl. L:182
21	TK630	911819344	P.Feeder grooved D2-D12 Compl. L:182
21	TK631	911819336	P.Feeder Knurled D2-D12 Compl. L182
21	TK634		P.Feeder smooth D2-D12 Compl. L:191
21	TK635		P.Feeder grooved D2-D12 Compl. L:191
21	TK636		P.Feeder Knurled D2-D12 Compl. L191
22	TK637		FEEDER BAR D2-D12 L:182
22	TK638	911819410	FEEDER BAR D2-D12 L:191

High Precision Engineering

Manufactured using advanced CNC machining, this feeder guarantees consistent dimensional accuracy. The high hardness and tensile strength ensure reliable performance and longevity, reducing the risk of wear and tear within textile machinery operations.

Exceptional Compatibility and Durability

Designed for universal projectile looms, this feeder integrates smoothly with standard setups. Its corrosion-resistant, robust construction enhances operational lifespan, while polished surfaces and smooth edges protect against material damage during high-speed textile processing.

Minimal Maintenance and Efficient Operation

With low lubrication requirements and minimal need for upkeep, operators benefit from reduced downtime. The feeders efficient bolt-mount installation streamlines setup, while low noise output supports a comfortable workplace environment, even at speeds up to 1000 rpm.

FAQs of MS Projectile Feeder:

Q: How is the MS Projectile Feeder mounted onto textile machinery?

A: The MS Projectile Feeder features a bolt-mount design, allowing secure and straightforward installation on universal projectile looms. This ensures stability during high-speed operations and accommodates standard loom configurations.

Q: What benefits does the high precision engineering of this feeder provide?

A: The CNC machined construction delivers high precision, guaranteeing consistent fabric processing and reducing the risk of misfeeds or breakdowns. This enhances output quality and extends the feeders lifespan within textile applications.

Q: When should this feeder be used in a textile machinery setup?

A: This feeder is ideal for use in textile looms that require high-capacity, accurate projectile feedingparticularly in environments demanding reliability, low maintenance, and compatibility with universal loom models.

Q: Where is corrosion resistance especially beneficial for this projectile feeder?

A: Corrosion protection is advantageous wherever the feeder is exposed to humid conditions, frequent cleaning, or prolonged operation, as it prevents rusting and ensures consistent performance in diverse textile manufacturing settings.

Q: What is the process for maintaining this projectile feeder?

A: Its design requires minimal maintenance, involving occasional checks for lubrication and routine cleaning to keep surfaces free of textile residues. The feeders robust build minimizes wear, cutting down on frequent intervention.

Q: How does the feeders robust design benefit textile machinery operators?

A: The sturdy construction and burr-free edges prevent component damage, allow reliable handling, and contribute to lower noise levels. This leads to safer operations and reduced workplace disruptions.
