Guide Tooth

Get a Price/Quote

Product Details:

Thermal Conductivity Medium
Diameter 10 mm
Surface Finish Polished
NO. Of Hole 2
Automation Grade Manual
Capacity High Wear Resistance
Mounting Type Bolt-On
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Guide Tooth Product Specifications

Textile Machine Type Spinning Machine
Tensile Strength 1200 MPa
Product Type Guide Tooth
Weight 30 grams
Thermal Conductivity Medium
Speed Up to 2000 rpm
Material Alloy Steel
Dimension (L*W*H) 65 mm x 18 mm x 10 mm
Diameter 10 mm
Surface Finish Polished
NO. Of Hole 2
Part Type Spare Part
Features Robust Construction, Precise Fit
Usage Used in Drafting System for guiding fibers
Size Standard
Spare/Component Type Guide Tooth
Mounting Type Bolt-On
Hardness 58-62 HRC
Capacity High Wear Resistance
Automation Grade Manual
Noise Level Low

Minimum Order Quantity 10 Pieces
Heat Treatment Case Hardened
Compatibility Universal for Most Textile Spinning Models
Replacement Interval 18-24 Months
NO. Of Hole 2
Packaging Type Box Packing
Manufacturing Technique Precision Machining
Corrosion Resistance Yes
Finish Type Rust Resistant
Color Silver / Metallic
Application Environment Suitable for High-Speed Textile Production Lines

Product Description

We have cornered the whole market by supplying quality assured range of Guide Tooth in various dimensions and thickness. This tooth is manufactured by diligent experts with the use of best grade raw materials as per set market norms. Known for its high quality and longer working life, the offered plates find important usage in textile industry. In addition to this, the provided Guide Tooth can be purchased from us at competitive rates by our valued clients.

Key points:

Withstand high impact
Cherished for robustness and uniform surface
Extremely durable
Premium finish

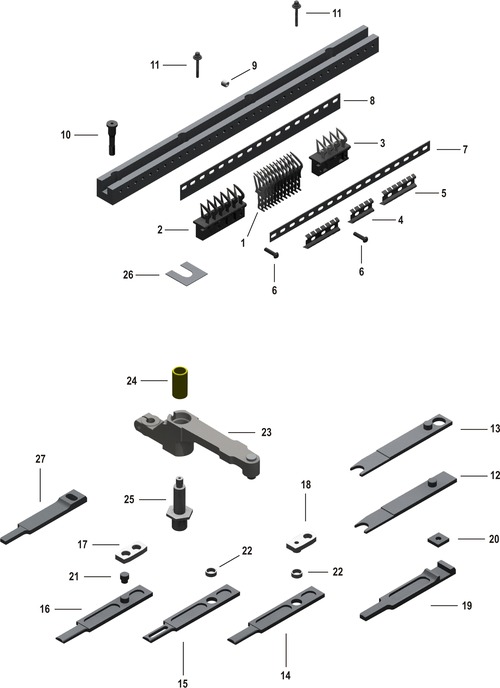

ID:	TK No:	ART No:	Designation:
1	TK1601	911123337	Guide Tooth D1
1	TK1602	911123732	Guide Tooth D2
2	TK1603	911323622	Block Guide Tooth D1/D12 6
2	TK1652	911323452	Block Guide Tooth D2 6
3	TK1604	911323623	Block Guide Tooth D1/D12 4
3	TK1653	911323453	Block Guide Tooth D2 4
4	TK1605	911123308	Guide tooth holder short
5	TK1606	911123307	Guide tooth holder short
6	TK1607	911323216	Special screw M4x23
7	TK1608	911323212	Guide tooth attachment band 73"
7	TK1609	911123663	Guide tooth attachment band 85"
7	TK1610	911123665	Guide tooth attachment band 110"
7	TK1611	911123667	Guide tooth attachment band 130"
7	TK1612	911323284	Guide tooth attachment band 143"
7	TK1613	911123669	Guide tooth attachment band 153"
7	TK1645		Guide tooth attachment band 183"
7	TK1614	911123571	Guide tooth attachment band 213"
8	TK1615	911323211	Lower steel band 73"
8	TK1616	911223652	Lower steel band 85"
8	TK1617	911223644	Lower steel band 110"
8	TK1618	911223656	Lower steel band 130"
8	TK1619	911323283	Lower steel band 143"
8	TK1620	911223658	Lower steel band 153"
8	TK1621	911123799	Lower steel band 183"
8	TK1622	911123570	Lower steel band 213"
9	TK1623	911223206	Pressure bolt G1/4X11
10	TK1624	911323128	Special screw G1/4
11	TK1625	921011571	Screw M5X35
11	TK1626	911323029	Hexagonal screw M5X35
11	TK1627	911323167	Special screw M5X36
12	TK1628	912526007	Projectile Returner TW11
13	TK1629	912526008	Projectile Returner TW11
14	TK1630	911826008	Projectile Returner PU
14	TK1631	911826021	Projectile Returner PU
15	TK1632		Projectile Returner PU Light
16	TK1633	911826006	Projectile Returner D2
16	TK1646		Projectile Returner PU/TW11
17	TK1634	91126103	Link TW11
18	TK1635	911326057	Link PU
19	TK1636	911326141	Projectile returner D1
19	TK1648	911326156	Projectile returner D1 HEAVY
19	TK1637	911326142	Projectile returner D2
19	TK1649	911326157	Projectile returner D2 HEAVY
20	TK1638	911326125	Slide Block 20x7,5
20	TK1639	911326127	Slide Block 20x10,5
21	TK1640	911126124	Rivet pin
22	TK1641	911726002	Bush D12/15X5,9
23	TK1642	911826001	Roller lever returner side D16
23	TK1643	911826012	Roller lever returner side D18
24	TK209	912119232	Bearing bush
24	TK210	911719002	Bearing bush
25	TK211	911119212	Rh Axle
26	TK1644		Shim (different thicknesses)
27	TK1650		Projectile returner D1 modified
27	TK1651		Projectile returner D2 modified

Optimal Performance for Textile Production

The Guide Tooth is engineered to meet the rigorous demands of modern textile spinning lines. Its high wear resistance and rust-resistant polished surface ensure longevity and consistent fiber guidance, even at speeds up to 2000 rpm. The universal fit makes it easy to integrate with most textile spinning machine models.

Precision Manufacturing and Durability

Utilizing advanced precision machining and case hardening, this component achieves a hardness of 58-62 HRC and tensile strength of 1200 MPa. These properties, combined with a robust construction and medium thermal conductivity, make it ideal for sustained high-performance use in drafting systems.

Simple Installation and Maintenance

Each Guide Tooth comes in box packing and features a convenient bolt-on mounting type for straightforward installation. With a standard replacement interval of 1824 months, maintaining optimal operation in your spinning lines is simple and efficient.

FAQs of Guide Tooth:

Q: How is the Guide Tooth installed in textile spinning machines?

A: The Guide Tooth features a bolt-on mounting system and comes with two holes for secure attachment, allowing for quick and easy installation in most standard drafting systems.

Q: What benefits does the rust-resistant finish provide in high-speed spinning lines?

A: The rust-resistant, polished finish ensures that the Guide Tooth remains durable and free from corrosion, even in high-moisture environments, thus prolonging its service life and maintaining consistent performance.

Q: When should I replace the Guide Tooth in my spinning machine?

A: It is recommended to replace the Guide Tooth every 18 to 24 months or sooner if visible wear or damage occurs, to ensure continuous smooth fiber guidance and prevent machine breakdowns.

Q: Where is the Guide Tooth commonly used within the textile machinery setup?

A: The Guide Tooth is primarily used in the drafting system of spinning machines, guiding fibers during the spinning process for improved yarn quality and operational efficiency.

Q: What is the manufacturing process of this Guide Tooth?

A: Each Guide Tooth is manufactured using precision machining followed by case hardening to achieve high wear resistance, a precise fit, and reliable operation in demanding textile environments.

Q: How does the Guide Tooth contribute to the efficiency of spinning lines?

A: Due to its robust construction, low noise operation, and high capacity for wear resistance, the Guide Tooth helps maintain steady fiber flow and minimizes downtime, supporting high-speed production up to 2000 rpm.
