Warp Let Off Aggregate

Get a Price/Quote

Product Details:

Tensile Strength Above 800 MPa
Automation Grade Semi-Automatic
Mounting Type Flange Mounted
Capacity High Load Bearing
Surface Finish Polished
Size Standard
Hardness HRC 58-62
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Warp Let Off Aggregate Product Specifications

Noise Level Low
Dimension (L*W*H) Customized
Spare/Component Type Let Off Aggregate
NO. Of Hole Custom
Speed Upto 1200 rpm
Thread Type Metric
Product Type Warp Let Off Aggregate
Thermal Conductivity Good
Part Type Loom Spare Part
Usage Weaving Machinery
Features Corrosion Resistant, Durable, Precision Engineered
Diameter As per standard design
Material Alloy Steel
Hardness HRC 58-62
Size Standard
Capacity High Load Bearing
Surface Finish Polished
Mounting Type Flange Mounted
Textile Machine Type Loom Machine
Automation Grade Semi-Automatic
Tensile Strength Above 800 MPa
Weight Approx. 4-8 kg

Lubrication Required
Color Silver/Grey
Maintenance Low Maintenance
Service Life Long Service Life
Temperature Resistance Up to 120°C
Application Area Textile Industry
Compatibility Suitable for various loom brands
Adjustment Type Manual & Automatic available

Product Description

Being a versatile entity in this domain, we are instrumental in supplying a premium range of Warp Let Off Aggregate. The offered aggregate is used to maintain the free length of warp within specified limits and to control the warp tension. At modern unit, the provided aggregate is manufactured by diligent experts with the aid of best quality raw materials and ultra-modern techniques. Additionally, this Warp Let Off Aggregate can be bought from us at reasonable prices by our prestigious clients.

Key Points:

Simple handling
Maintenance-free
Customized adaptation of let-off device with gear combination
High strength

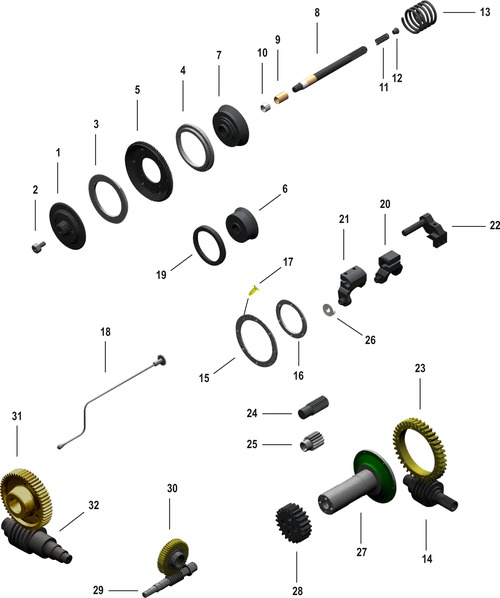

ID:	TK No:	ART No:	Designation:
1	TK2001	911805041	Cam Disc simple stroke 25 G
1	TK2002	912505049	Cam Disc double stroke 25 G
1	TK2003	911805042	Cam Disc 40G/28 G
1	TK2004	911105285	Cam Disc with 2 cams
1	TK2005	911105233	Cam Disc with 1 cam
2	TK2006	911305374	Special Screw G1/8"
3	TK2007	911105382	Clutch Linning 25 G
3	TK2008	911305285	Clutch Linning 28 G
3	TK2009	911105455	Clutch Linning 25 G
4	TK2010	911305284	Brake ring 28 G
5	TK2011	911105348	Switch wheel
5	TK2012	911305286	Switch wheel 28 G
6	TK2013	911305262	Ratchet wheel 25 G (911 105 334)
6	TK2015	911305263	Ratchet wheel 20 G(911 105 381)
7	TK2014	911305287	Ratchet wheel 28 G
8	TK2016	912505023	KSA Shaft
8	TK2017	911805036	KSA Shaft long
9	TK2018	911205288	Bush 20x25x40
10	TK2019	911105256	Bush 20x24,8x20
11	TK2020	911305369	Pressure spring
12	TK2021	911105335	Spring plate
13	TK2022	911205234	Let off drive spring
14	TK2023	911805062	Worm 2/39
14	TK2024	911805061	Worm 1/39
14	TK2025	911805063	Worm 1/66
14	TK2058		Worm 3/38
14	TK2065	911805064	Worm 6/36
15	TK2026	911205169	Brake Ring D178
16	TK2027	911205196	Brake Ring D110x130
17	TK2028		Rivet
17	TK2029		Rivet
18	TK2030	911105299	Crank
19	TK2031	911305295	Brake ring 25 G (911 105 349)
19	TK2032	911305296	Brake ring 20 G (911 105 384)
19	TK2062		Brake ring 25 G Single piece
20	TK2033	911105336	Roller lever
21	TK2034	911805012	Roller lever
22	TK2035	911305403	Axle support
23	TK2049	911305321	Toothed rim 6:36
23	TK2050	911305425	Toothed rim 3:38
23	TK2051	911305318	Toothed rim 2:39
23	TK2052	911305317	Toothed rim 1:39
23	TK2053	911305319	Toothed rim 1:66
24	TK2056	911805074	Gear wheel Z:14
25	TK2055	911105313	Gear wheel Z:21
26	TK2057	924925200	Ball Bearing
27	TK2063	911805109	Gear wheel shaft
28	TK2064	911405109	Gear wheel z:22
29	TK2060		Semco shaft
30	TK2061		Semco Brass gear
31	TK2066	742658000	Worm wheel P7300
32	TK2067	742659000	Worm shaft Z:51 P7300

High Durability and Longevity

Engineered from robust alloy steel, this let off aggregate boasts exceptional durability and a long service life. Its corrosion-resistant finish ensures reliability even in challenging textile production environments, reducing the need for frequent replacements and providing peace of mind to operators.

Versatile Compatibility and Easy Adjustment

Designed to accommodate multiple loom brands, this component features both manual and automatic adjustment options to suit a variety of weaving processes. Its metric thread and flange mounting system make installation straightforward, saving valuable setup time during maintenance or product changeover.

Optimal Performance in Weaving Applications

With a high load bearing capacity, low noise operation, and resistance to temperatures up to 120C, this let off aggregate ensures smooth, efficient performance in demanding weaving environments. Its precision engineering minimizes maintenance needs while optimizing both speed and output quality.

FAQs of Warp Let Off Aggregate:

Q: How is the Warp Let Off Aggregate installed on weaving machines?

A: The aggregate is flange mounted and compatible with most loom machines. Its standard metric thread type and available customized hole options ensure a secure installation, following manufacturer guidelines for your specific loom brand.

Q: What are the benefits of using this let off aggregate in textile production?

A: Users benefit from a durable, corrosion-resistant component that ensures long operational life, high load bearing, and minimal maintenance. It supports efficient, high-speed weaving with low noise and stable performance.

Q: When is lubrication required for this component?

A: Lubrication is necessary as part of routine maintenance to ensure smooth operation and to maximize service life. Scheduled intervals depend on loom operating conditions and manufacturer recommendations.

Q: Where can this aggregate be used and is it compatible with different loom brands?

A: The Warp Let Off Aggregate is specifically designed for weaving machinery in textile production lines and is suitable for a wide range of loom brands. Its standardized and customized features allow for broad compatibility.

Q: What is the process for adjusting the let off aggregate?

A: The aggregate features both manual and automatic adjustment options. Manual adjustments can be made using standard tools, while automatic settings are configured according to loom specifications, making the process adaptable to various operational needs.

Q: How does the aggregate withstand high speeds and loads?

A: With a tensile strength above 800 MPa and hardness rated at HRC 58-62, the component is built for high-speed (up to 1200 rpm) and high-load weaving applications, thanks to its precision engineering and superior alloy steel construction.
