Having dimensional accuracy and rust free surface, our offered Picking Lock is best for fitting in the door panels in order to give excellent gripness while locking gates. Available in customized sizes and specifications, this lock is very easy to use in residential as well as industrial area. It can easily be replaced with new one while repairing. In addition to this, we offer the provided Picking Lock to our valued patrons as per their requirements.
Key Points:

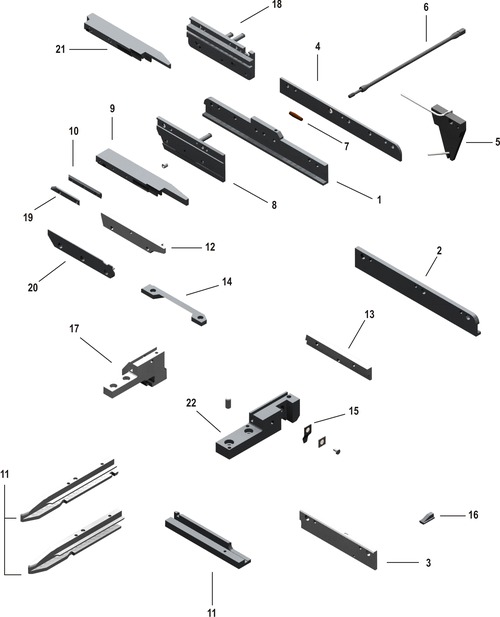

ID: | TK No: | ART No: | Designation: |
1 | TK301 | 911316402 | Proj.Feeder Front Guide Ms |
2 | TK302 | 911116193 | Proj.Feeder Front Guide Ms Tw11 |
3 | TK303 | 911316025 | Proj.Feeder Guide ES L:189,5MM |
3 | TK304 | 911116155 | Proj.Feeder Guide ES |
4 | TK305 | 911316444 | Rear Guide rail |
4 | TK306 | 911316128 | Rear Guide rail |
5 | TK307 | 911316443 | Selector Lubricating Nozzle |
6 | TK308 | 911116232 | Special screw M6 L:293 MM |
6 | TK360 | 911316744 | Special screw M6 L:292,50 MM |
7 | TK309 | 911316439 | Spacing bush L:30 |
8 | TK310 | 911716009 | Centering plate |
8 | TK311 | 912116113 | Centering Plate Tw11 |
9 | TK312 | 911316272 | Upper guide rail Ms D1(911316747) |
9 | TK313 | 911316173 | Upper guide rail Ms D2 |
9 | TK314 | 911316572 | Upper guide rail Ms D1 |
9 | TK315 | 911316117 | Upper guide rail Ms D1 |
9 | TK316 | 911316175 | Upper guide rail Ms D2 |
10 | TK317 | 911116150 | Upper Guide plate |
11 | TK318 | 911116161 | Upper Guide rail Es D1 |
11 | TK319 | 911416062 | Upper Guide rail Es D12 |
11 | TK320 | 911316726 | Upper Guide rail Es D1 |
11 |
|
911316269 | Upper Guide rail Es D1 |
11 | TK321 | 911316468 | Upper Guide rail Es D2 |
11 | TK322 | 911416263 | Upper Guide rail Es D12 |
11 | TK | 911816129 | Upper Guide rail Es D12 |
11 | TK357 | 911416185 | Upper Guide rail Es D1 D12 |
11 | TK354 | 911316486 | Upper Guide rail Es D1 |
11 | TK365 | 911416262 | Upper Guide rail Es D2 |
11 |
|
911816128 | Upper Guide rail Es D2 |
11 | TK369 | 911316174 | Upper Guide rail Es D1 |
12 | TK323 | 911316268 | SL Guide Rail |
13 | TK324 | 911116194 | Picker Guide |
14 | TK325 | 911116190 | Cover Plate MS |
14 | TK326 | 911116189 | Cover Plate MS |
15 | TK331 | 911316236 | Flat Spring L40,5 MM |
16 | TK332 | 911116187 | Weft carrier stop |
17 | TK333 | 911316324 | Front picking block D1 MS |
17 | TK334 | 911116177 | Front picking block D1 ES |
18 | TK335 | 911416058 | Centering Rail L:161mm |
18 | TK336 | 911416164 | Centering Rail L:164mm |
19 | TK337 | 911316659 | Upper guide plate P7100 |
20 | TK339 | 911416089 | SL Guide rail P7100 L:164 |
20 | TK340 | 911316907 | SL Guide rail P7100 L:161 |
21 | TK341 | 911416188 | Upper Guide rail Ms P7100 |
21 | TK342 | 911416255 | Upper Guide rail Ms P7100 |
21 | TK343 | 911316915 | Upper Guide rail Ms P7100 |
21 | TK344 | 911316834 | Upper Guide rail Ms P7100 |
21 | TK359 | 742246000 | Upper Guide rail P7100 D2 |
21 | TK366 | 740739000 | Upper Guide rail P7100 D1D12 |
21 | TK371 | 911816104 | Upper Guide rail P7100 D2 L:213,5 |
21 |
|
911416159 | Upper Guide rail P7100 D2 L:213,5 |
21 | TK370 | 911316916 | Upper Guide rail P7100 D2 |
22 | TK350 | 911116180 | Rear Block MS D1 |
22 | TK372 | 911116306 | Rear Block ES D2 |
22 | TK351 | 911116178 | Rear Block ES D1 |
22 | TK356 | 740926000 | Rear Block ES D12 D2 |
