Picking Mechanism

Get a Price/Quote

Product Details:

NO. Of Hole 2
Surface Finish Smooth Polished
Mounting Type Bolt-On
Thermal Conductivity 36 W/mK
Thread Type Metric / Custom
Part Type Precision Textile Component
Diameter 12 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Picking Mechanism Product Specifications

Capacity Heavy-Duty Operation
Material High-grade Alloy Steel
Features Corrosion Resistant, High Durability, Precision Machining
Diameter 12 mm
Part Type Precision Textile Component
Thread Type Metric / Custom
Thermal Conductivity 36 W/mK
Size Standard / Customizable
Product Type Picking Mechanism
Noise Level Low (<65 dB)
Speed Up to 1200 RPM
Hardness 55-60 HRC
Dimension (L*W*H) 80x20x20 mm
Automation Grade Automatic
Weight 180 g
Mounting Type Bolt-On
Surface Finish Smooth Polished
Spare/Component Type Machine Spare Part
Usage Yarn Picking Operation
NO. Of Hole 2
Tensile Strength 800 MPa
Textile Machine Type Weaving Loom

Installation Easy fit and replace
Operating Temperature Range -10°C to 80°C
Precision Grade ISO 2768 mk
Service Life Up to 5 Years
Compatibility Universal for Standard Looms
NO. Of Hole 2
Lubrication Requirement Minimal
Shock Resistance High

Product Description

Being a quality conscious organization, we supply the best grade Picking Mechanism. Procured from trusted vendors of the market, it is manufactured using top-notch quality raw materials under the direction of diligent experts. The provided picking is widely used to deliver the shuttle along the correct flight length and throw the shuttle at a predetermined speed. Provided at reasonable prices, this Picking Mechanism is made available in various thickness in bulk.

Key points:

Picking arm is over shuttle
Higher picks per minute
Less power required
Works more smoothly

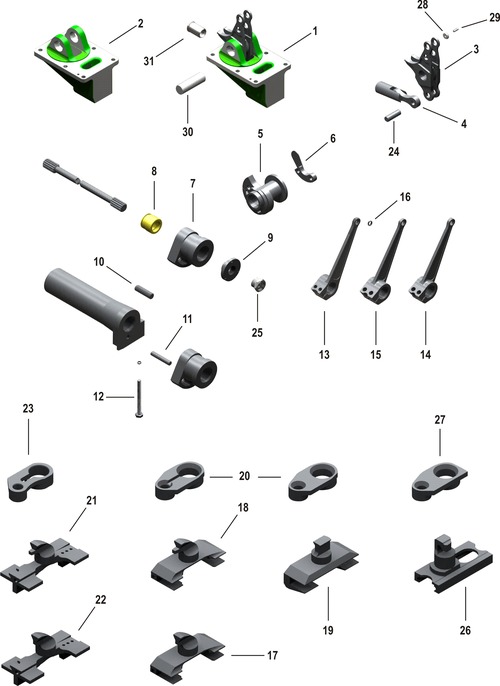

ID:	TK No:	ART No:	Designation:
1	TK901	911822126	Picking Housing with Roller lever
1	TK902	912522125	Picking Housing with Roller lever
2	TK903	911822125	Picking Housing
2	TK904	912522126	Picking Housing
3	TK905	911822044	Picker Roller Lever
3	TK906	912522116	Picker Roller Lever
4	TK907	911822054	Brake Plunger Piston L:83
4	TK908	912522103	Brake Plunger Piston L:64,4
5	TK909	911322227	Picking Cam
5	TK910	911322639	Picking Cam
6	TK911	911322067	Roller Holder
7	TK912	912522153	Tension Flange
7	TK944	911822137	Tension Flange P7100
8	TK913	911122295	Bearing Bush
9	TK914	911122322	Tension Flange Cover
10	TK915	921799100	Cylindrical pin
10	TK916	921011455	Cylindrical pin
11	TK917	921011432	Stud M12x65
11	TK918	921022000	Stud 1/2" x 60
11	TK919	921011040	Stud M16x70
12	TK920	911322302	Setting screw M14X1,5 L:110 mm
12	TK921	911322335	Setting screw M14X1,5 L:118 mm
12	TK922	911322537	Setting screw M14X1,5 L:160 mm
12	TK923	911322527	Setting screw M14X1,5 L:168 mm
13	TK924	911822065	Picking Lever D37 mm
13	TK925	911822024	Picking Lever D35 mm
14	TK926	911822174	Picking Lever D37 mm Steel
15	TK927	911822108	Picking Lever D38 mm Steel
16	TK928	911722012	Bush 13,2x11x4
17	TK929	911322278	Picking Shoe D1 PU
18	TK931	911622051	Picking Shoe D1 PU with nose tip
18	TK930	911322279	Picking Shoe D2 PU
19	TK932	911122190	Picking Shoe D1 TW11
20	TK933	911322147	Picking Link D1 Pu-TW11
20	TK934	911322152	Picking Link D2 Pu
21	TK953	742768000	Picking Shoe D1 P7100 elastic
21	TK954	740854000	Picking Shoe D1D12 P7100 Light
22	TK936	911322541	Picking Shoe D2 P7100
23	TK938	911322397	Picking Link P7100 D1
23	TK939	911322896	Picking Link P7100 D1 D2
23		911322525	Picking Link P7100 D1D2
23		740850000	Picking Link P7100 D1D2
24	TK940	911322097	Hollow Bolt D15X43MM
24	TK941	911122239	Split Pin L:42
24	TK942	911322011	Split Pin L:34,9
25	TK943	921866010	Oil level glass
26	TK947		Picking shoe ps model
27	TK948		Picking link PS Type
28	TK946		Roller for plunger pu
28	TK945		Roller for plunger p7100
29	TK949		Carbide pin D15
29	TK950		Carbide pin D16
30	TK951	911322404	Bolt
31	TK952	911722013	Bush D25/32/34X53,50

Precision-Crafted for Durable Performance

Manufactured from high-grade alloy steel, our picking mechanism offers exceptional durability and corrosion resistance, ensuring longevity even under intensive use. A smooth polished finish and precision machining to ISO 2768 mk standards guarantee reliable, quiet, and efficient performance in weaving looms. Designed for universal compatibility with standard looms, its perfectly suited for textile operations needing dependable, heavy-duty automation.

Designed for Seamless Installation and Maintenance

The picking mechanism features an easy bolt-on mounting system and standard or customizable sizing for straightforward integration into existing loom setups. Minimal lubrication requirements and high shock resistance reduce maintenance needs and operational downtime. With a service life of up to 5 years, it offers peace of mind and increases productivity for textile manufacturers and importers alike.

FAQs of Picking Mechanism:

Q: How is this picking mechanism installed on standard weaving looms?

A: The picking mechanism is designed for effortless installation using a bolt-on mounting type and two pre-drilled holes, enabling quick and secure attachment. Its universal compatibility and standard dimensions make it easy to fit or replace without the need for extensive modifications.

Q: What are the main advantages of using a high-grade alloy steel picking mechanism with a smooth polished finish?

A: High-grade alloy steel ensures superior strength, durability, and resistance to wear and corrosion, essential for heavy-duty textile operations. The smooth polished finish minimizes friction and prevents fabric snagging, contributing to quieter operation and enhanced service life.

Q: When should minimal lubrication be applied to this picking mechanism, and why is it beneficial?

A: Minimal lubrication should be applied periodically according to loom manufacturers recommendations or if operation becomes less smooth. The design reduces the need for frequent lubrication, minimizing maintenance efforts, lowering operational costs, and preventing lubricant contamination of yarn.

Q: Where can this picking mechanism be used and who typically benefits from it?

A: This picking mechanism is suitable for use in automatic and semi-automatic weaving looms across the textile industry. Suppliers, importers, and weaving mills in India and other markets benefit from its reliability, ease of installation, and extended service life.

Q: What process ensures that the picking mechanism meets high precision and durability standards?

A: Each picking mechanism undergoes precision machining to ISO 2768 mk grade, rigorous material selection, and hardness treatment (55-60 HRC). Final inspection and quality assurance steps verify dimensions, tensile strength, and surface finish to ensure consistent performance and longevity.

Q: How does the picking mechanism contribute to efficient yarn picking operations at high speeds?

A: The components robust design, high shock resistance, and balanced construction enable smooth and accurate yarn picking at speeds up to 1200 RPM. Its low noise profile and vibration control further optimize loom efficiency, minimizing wear on surrounding components.
