Warp Let Off

Get a Price/Quote

Product Details:

Thermal Conductivity Good
Automation Grade Semi-automatic
Noise Level Low
Diameter 200 mm
Size Standard / Customized
Features Corrosion Resistant, High Strength
Capacity Heavy Duty
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Warp Let Off Product Specifications

Weight 7 kg
Diameter 200 mm
Speed 500 RPM
Automation Grade Semi-automatic
Thermal Conductivity Good
Product Type Warp Let Off
Textile Machine Type Weaving Machine
Noise Level Low
Spare/Component Type Let Off Mechanism
NO. Of Hole 2
Mounting Type Bolt-On
Hardness HRC 40-45
Material High-grade Alloy Steel
Usage Industrial
Capacity Heavy Duty
Features Corrosion Resistant, High Strength
Size Standard / Customized
Surface Finish Precision Machined
Thread Type Metric
Tensile Strength >600 MPa
Dimension (L*W*H) 300 x 150 x 120 mm
Part Type Spare Parts

NO. Of Hole 4
Packaging Type Wooden Box
Lubrication Requirement Periodic
Resistance to Wear High
Operating Temperature -10°C to 60°C
Compatibility Universal fitting for all standard weaving machines
Color Metallic Grey

Product Description

We have gathered a huge customer base in this domain by supplying a qualitative array of Warp Let Off. Having an excellent corrosion resistance nature and maintenance free properties, this product is widely used in textile machinery. The provided product is manufactured with the aid of advanced machine under the observation deft professionals as per the quality standard norms. Our esteemed patrons can buy the offered Warp Let Off from us at cost effective prices.

Key Points:

High mechanical strength
Easy to weld
Easy to use
Tensile enough

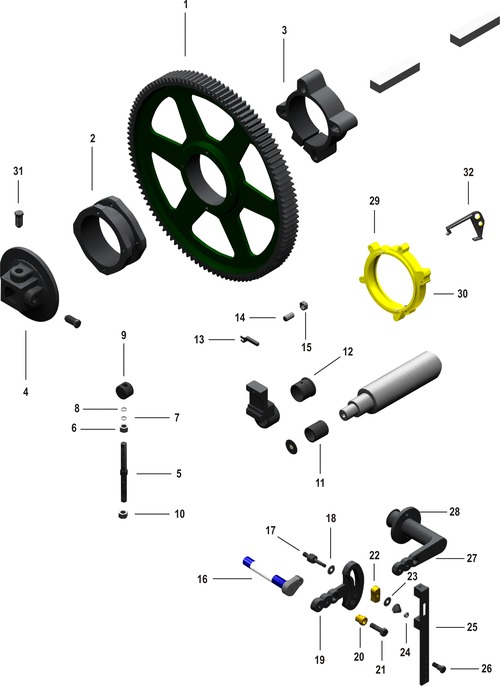

ID:	TK No:	ART No:	Designation:
1	TK2101	911006217	Gear Wheel D575 Z:113
1	TK2102	911006801	Gear Wheel D635 Z:125
1	TK2103	911306287	Gear Wheel D795 Z:157
2	TK2104	911006241	Bearing Ring
2	TK2131	911006241	Bearing Ring modified circle
3	TK2105	911164196	Clamping flange D150 mm
4	TK2106	911164197	Square bar flange D40X40
4	TK2107	911164125	Square bar flange D45X45
5	TK2108	911064103	Support bolt L:190 mm
5	TK2109	911164201	Support bolt L:220 mm
6	TK2110	921509901	Nut left hand M16
7	TK2111	921983000	Taper Disc D19
8	TK2112	921983100	Ball disc
9	TK2113	911006227	Disc
10	TK2114	921509900	Nut M16
11	TK2115	911106805	Pressure bush 34/44,3x50,8
12	TK2116	911106358	Bush 49,2/50,28/55,15x45
13	TK2117	911106290	KB Locking lever
14	TK2118	911164146	Pin D15X30
15	TK2119	911106291	Sliding Piece
16	TK2036	911105364	Lever shaft
17	TK2037	911005266	Threaded pin
18	TK2038	911205122	Washer
19	TK2039	911105177	Regulating lever
20	TK2040	911205215	Bush
21	TK2041	911105376	Axle bolt
22	TK2042	911205232	Sliding piece
23	TK2043	911205267	Spring
24	TK2044	921551000	Nylon stop nut
25	TK2045	911105312	Connecting lever
26	TK2046	911105310	Screw
27	TK2047	911106414	Regulating lever
28	TK2048	911106446	Clamping flange
29	TK2120	911506152	Brass bush upper
30	TK2121	911506124	Brass bush lower
31	TK2125	911206333	Special screw G1/2 45MM
32	TK2122	911106749	Clip 50x50
32	TK2132		Clip 45x45

Robust Design for Industrial Efficiency

Engineered from high-grade alloy steel and finished with precision machining, this Warp Let Off guarantees lasting strength and resistance to wear, making it a dependable choice for weaving machines in demanding textile environments. Its corrosion-resistant metallic grey finish ensures longevity, while the heavy-duty design can handle intensive operational loads.

Universal Fit and Customization Options

The let off mechanism offers universal compatibility for all standard weaving machines, with both standard and customizable sizes available. Bolt-on mounting and metric threading allow for seamless installation, ensuring a streamlined integration process in various textile manufacturing setups.

FAQs of Warp Let Off:

Q: How often does the Warp Let Off require lubrication?

A: The Warp Let Off should be lubricated periodically to maintain optimal performance and longevity. The precise interval will depend on the usage environment and workload, but regular monitoring and scheduled maintenance are recommended.

Q: What are the benefits of using high-grade alloy steel in this component?

A: High-grade alloy steel enhances the durability, strength, and corrosion resistance of the Warp Let Off. This results in superior wear resistance and a long operational lifespan, ensuring consistent performance in heavy-duty textile applications.

Q: Where can the Warp Let Off be used?

A: This product is designed for universal fitting in all standard weaving machines and is suitable for industrial textile manufacturing environments across India where robust let off mechanisms are required.

Q: What is the process of installing this let off mechanism?

A: Installation is straightforward due to the bolt-on mounting design and metric thread. The mechanism fits universally, requiring only basic tooling for attachment to standard weaving machine assemblies as a spare or replacement part.

Q: When should I consider replacing the Warp Let Off?

A: Consider replacing the let off mechanism if you notice excessive wear, reduced tension consistency, persistent noise, or inefficiency in fabric feeding, as these are indicators of component fatigue or damage.

Q: What usage guidelines should be followed for optimal performance?

A: For best results, ensure the component is operated within the recommended temperature and speed limits (-10C to 60C and up to 500 RPM), maintain periodic lubrication, and regularly inspect for wear or damage.

Q: What advantages does the precision-machined surface finish provide?

A: A precision-machined finish ensures smooth operation, minimal noise generation, and excellent fit with machine parts, all of which contribute to the let off mechanisms efficiency and reliability in weaving processes.
