Take Up Drive

Get a Price/Quote

Product Details:

Features Corrosion Resistant, Durable, Precision Engineered
Mounting Type Bolt-On
Thread Type Metric
Surface Finish Polished
Diameter 32 mm
Part Type Mechanical Drive Component
Tensile Strength 700-850 MPa
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Take Up Drive Price And Quantity

Maintenance Low Maintenance
Compatibility Compatible with major textile brands
Operating Temperature -10°C to 70°C
Color Metallic Grey
Installation Easy to Install
Shock Resistance High
Alignment Self-Aligning Design
Corrosion Resistance Yes
Application Industrial Textile Machineries

Take Up Drive Product Specifications

Mounting Type Bolt-On
Thread Type Metric
Thermal Conductivity Medium
Features Corrosion Resistant, Durable, Precision Engineered
Speed Up to 1800 RPM
NO. Of Hole 4
Surface Finish Polished
Diameter 32 mm
Dimension (L*W*H) 165 mm x 45 mm x 40 mm
Textile Machine Type Spinning Machine, Textile Processing Machine
Material Alloy Steel
Part Type Mechanical Drive Component
Automation Grade Semi-Automatic
Weight 3.6 kg
Hardness 58-62 HRC
Product Type Take Up Drive
Usage Textile Machinery
Spare/Component Type Drive Mechanism
Size Standard, Custom Available
Capacity High Capacity
Tensile Strength 700-850 MPa
Noise Level Low

Maintenance Low Maintenance
Compatibility Compatible with major textile brands
Operating Temperature -10°C to 70°C
Color Metallic Grey
Installation Easy to Install
Shock Resistance High
Alignment Self-Aligning Design
Corrosion Resistance Yes
Application Industrial Textile Machineries

Product Description

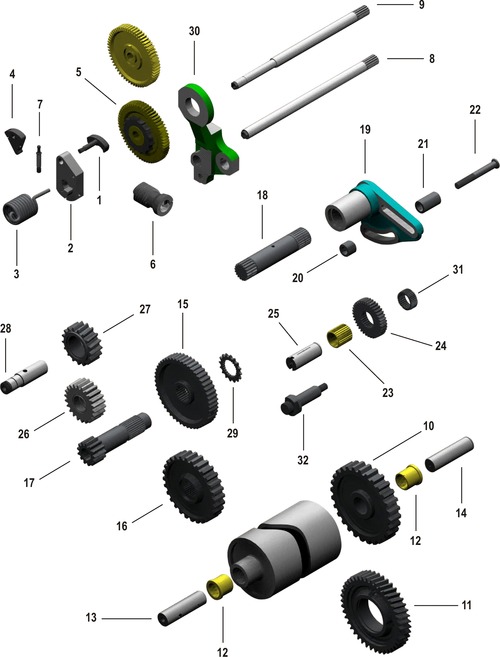

ID:	TK No:	ART No:	Designation:
1	TK2401	911110246	Ratchet
2	TK2402	911110250	Ratchet support
3	TK2403	911210131	Torsion spring
4	TK2410	911110235	Switch lever
5	TK2414	912510112	Globoid worm gear 2:60
5	TK2415	912510111	Globoid worm gear 4:60
5	TK2416	911110242	Globoid worm gear 4:60 old type
5	TK2417	911510113	Globoid worm gear 1:60
5	TK2418	912510114	Globoid worm gear 8:55
5	TK2460		Globoid worm gear 8:55 PS
5	TK2475		Globoid worm gear 8:55 old type bearing
6	TK2419	911110337	Worm gear 4:60
6	TK2420	912510115	Worm gear 1:60
6	TK2421	911510116	Worm gear 2:60
6	TK2422	911110338	Worm gear 8:55
7	TK2423	911110238	Reversing bolt
8	TK2424	911110176	Splined shaft
9	TK2456	911310218	Splined shaft 416,6
10	TK2427	912511039	Spur Wheel
11	TK2465	911811053	Gear Wheel helical Z:48
11	TK2467	911311762	Spur wheel z:48 module 4
12	TK2428	911211164	Bush 35/45x42
13	TK2429	911311532	Stud
14	TK2430	911111102	Stud
15	TK2431	911310169	Spur wheel(911 110 221)
16	TK2453	911110355	Spur wheel z49 S
17	TK2432	912510101	Pinion shaft z:13
17	TK2433	911110178	Pinion shaft z:10
17	TK2476	912510102	Pinion shaft z:13 Helical
18	TK2434	911110220	Pinion shaft
19	TK2435	911110189	Radius bracket
20	TK2462	911110119	Spacing Bush 20x32x25,2
21	TK2463	911110120	Spacing Bush 20x32x55
22	TK2464	921059969	Bolt m16x130
23	TK2436	911110144	Bush
23	TK2437	930110416	Bush
24	TK2438	911110401	Change gear Z:15
24	TK2439	911110424	Change gear Z:23
24	TK2440	911110412	Change gear Z:26
24	TK2454		Change gear Z:32
24	TK2441	911110413	Change gear Z:34
24	TK2442	911110422	Change gear Z:37
24	TK2443	911110414	Change gear Z:38
24	TK2444	911110415	Change gear Z:42
24	TK2445	911110416	Change gear Z:46
24	TK2446	911110417	Change gear Z:49
24	TK2447	911110418	Change gear Z:50
24	TK2448	911110419	Change gear Z:51
24	TK2449	911110420	Change gear Z:52
25	TK2455	911010239	Stud
26	TK2451	912510129	intermediate gear wheel z:23
26	TK2477	912510024	inter. gear wheel z:23 brass bushing
27	TK2459	912510151	intermediate gear wheel z:23 Helical
27	TK2458		intermediate gear wheel z:23
28	TK2457	911110353	Axle
28	TK2474	911110343	Axle L:29
29	TK2468	911110263	Chain wheel z:23
30	TK2461	911010254	Support
31	TK2469	911110167	Splined bush
32	TK2450	930110417	Bolt m16x130

Built for Demanding Textile Applications

Specifically designed for spinning and textile processing machines, this Take Up Drive combines high capacity, robust durability, and precision operation. Its compatibility with major textile brands makes it a versatile choice for diverse textile mills seeking reliable and long-lasting components that streamline production.

Superior Engineering & Easy Installation

Manufactured from high-grade alloy steel and engineered for corrosion resistance, each unit features a bolt-on mounting type for straightforward installation. The self-aligning design reduces adjustment time, while the metric thread and four-hole configuration ensure a secure, vibration-resistant fit.

Maintenance-Friendly & Efficient

Benefit from minimal maintenance needs and high operational efficiency. The Take Up Drives polished surface, low noise level, and capacity for speeds up to 1800 RPM allow for smooth, continuous operationresulting in less downtime and reduced overall operating costs for your textile machinery.

FAQs of Take Up Drive:

Q: How do I install the Take Up Drive in my textile machine?

A: The Take Up Drive is designed for easy installation with a bolt-on mounting system and metric thread type. Simply align the four holes with your machines pre-drilled locations, secure with appropriate bolts, and ensure the self-aligning mechanism is properly seated for smooth operation.

Q: What benefits does the self-aligning design provide in textile applications?

A: The self-aligning design allows the Take Up Drive to automatically compensate for misalignments during installation or machine movement. This enhances operational reliability, reduces wear, and minimizes maintenance needs, particularly important in demanding textile environments.

Q: When should the Take Up Drive be considered for replacement or upgrade?

A: You should consider replacing or upgrading the Take Up Drive if your current unit exhibits signs of wear, increased noise, loss of alignment, or if you are upgrading to higher speeds or capacity. This unit is engineered for durability, but regular inspection ensures optimal performance.

Q: Where can I purchase the Take Up Drive and is custom sizing available?

A: The Take Up Drive is available through authorized importers and suppliers across India. Standard and custom sizes are offered to ensure compatibility with a wide range of textile machinery brands and setups.

Q: What textile machines and brands is this product compatible with?

A: This Take Up Drive is compatible with major textile machinery brands and is suited for both spinning and processing machines, supporting a broad range of industrial applications.

Q: How does the Take Up Drive improve machine performance and operation?

A: With precision engineering, high shock resistance, and a polished corrosion-resistant finish, the Take Up Drive ensures smooth, reliable motion. It supports high operational speeds up to 1800 RPM while minimizing noise and maintenance requirements.

Q: What process is involved in maintaining the Take Up Drive?

A: The Take Up Drive requires minimal maintenance due to its robust alloy steel construction and polished surface. Regular visual inspection and basic cleaning are typically sufficient to maintain peak performance in industrial textile settings.
