Receiving Unit

Get a Price/Quote

Product Details:

Size Standard
Mounting Type Bolt-On
Diameter 80 mm
Automation Grade Semi-Automatic
Features Corrosion Resistant, High Wear Resistance, Long Service Life
Hardness HRC 55-62
Tensile Strength Up to 900 MPa
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Receiving Unit Product Specifications

Dimension (L*W*H) 100mm x 80mm x 65mm
Product Type Receiving Unit
Diameter 80 mm
Noise Level Low
Usage Textile Machine Operations
Features Corrosion Resistant, High Wear Resistance, Long Service Life
Automation Grade Semi-Automatic
Speed 3000 RPM
Spare/Component Type Machine Spare
Hardness HRC 55-62
Tensile Strength Up to 900 MPa
Part Type Spare Part
Textile Machine Type Textile Spinning Machine
Thread Type Metric
Capacity Heavy Duty
Thermal Conductivity Good
Mounting Type Bolt-On
Material High-grade Alloy Steel
Size Standard
Surface Finish Precision Ground
Weight 3.4 kg

Temperature Range -10°C to +80°C
Maintenance Minimal
Packaging Type Box
Operating Voltage N/A (Mechanical Component)
NO. Of Hole 4
Manufacturing Technique CNC Machined
Compatibility Universal for textile receiving mechanisms
Application Environment Industrial

Product Description

Owing to our rich goodwill in this domain, we are engaged in offering Receiving Unit. The provided unit is manufactured using superior quality raw materials, which is obtained from the most trusted and reliable vendors in business. Finding most important usage in machinery, Our provided unit receiving control for an aircraft from another controller or facility. Apart from this, the offered Receiving Unit can be availed from us at reasonable rates by our prestigious clients.

Key points:

Anti-corrosive surface
Ruggedness
Withstand high impact
Accurate dimensions

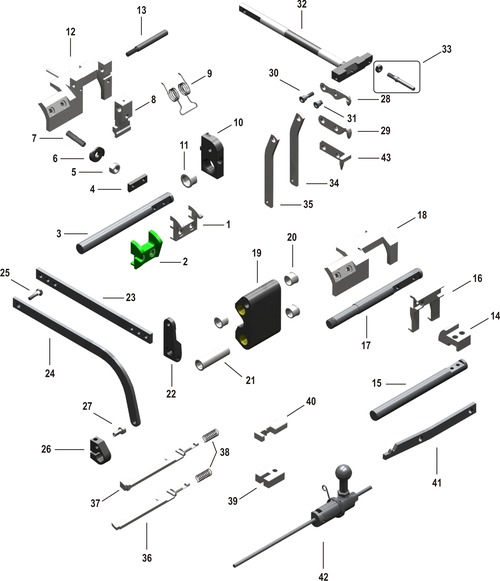

ID:	TK No:	ART No:	Designation:
1	TK1701	911130133	Expeller For D1
2	TK1702	911330069	Expeller Fork D1 Plastic
3	TK1703	911130154	Shaft 15x186
4	TK1704	911130159	Stop plate
5	TK1705	911133147	Special nut M8
6	TK1706	921871843	Washer 8,4/24x4
7	TK1707	921451200	Hexagonal Socket screw
8	TK1708	911130161	Latch D1
8	TK1709	911830004	Latch D1 plastic
8	TK1752	270002629	Latch D1 plastic P7300 (TK3120)
9	TK1710	911230147	Spring
10	TK1711	911825007	Support plate
11	TK1712	912130149	Bush
12	TK1713	911325158	Receiving box outer part
12	TK1714	911125129	Receiving box outer part
13	TK1715	911125141	Axle bolt 9/12 x 64
14	TK1716	911830001	Expeller fork D2
15	TK1717	911130179	Shaft
16	TK1718	911130181	Ratchet D2
17	TK1719	911130178	Shaft L:155
18	TK1720	911125406	Receiving box outer part D2
19	TK1721	912530021	Support D2
20	TK1722	911230116	Bush
21	TK1723	911130182	Bush
22	TK1724	911130176	Lever
23	TK1725	911130175	Bar D2
24	TK1726	911130157	Bent bar
25	TK1727	911300055	Axle bolt D8 M6
25	TK1728	911300057	Axle bolt D10 M6
26	TK1729	911830002	Clamping Lever
27	TK1730	911130107	Rivet pin 6/8x17,65
28	TK1731	911629008	Fas opener D1 D12
29	TK1732	911129165	Fas opener D1
29	TK1733	911129181	Fas opener D2
30	TK1734	911329032	Screw Long
31	TK1735	911229131	Screw short
32	TK1736	911329044	Expeller rod D1
32	TK1737	911329046	Expeller rod D2
33	TK1738	911129146	Bolt with nut D1
33	TK1739	911129178	Bolt with nut D2
34	TK1740	911129158	Link D1
35	TK1741	911129179	Link D1 D12 D2
36	TK1742	911128134	Projectile feeler D1
37	TK1743	911128136	Projectile feeler D2
38	TK1744	911228127	Feeler spring
39	TK1745	911125106	Guide piece 5 mm
39	TK1746	911125145	Guide piece 9 mm
40	TK1747	911128107	Slide
41	TK1748	911128120	Hooked Link
42	TK1750	912521028	Mechanical weft detector
43	TK1751		Modified opener FA for D12

High Precision for Demanding Applications

Designed using CNC machining, the receiving unit ensures precise dimensions and consistency, vital for the demanding environments of textile spinning machines. Its tight tolerance and precision ground finish guarantee seamless integration and reliable operation, minimizing machine downtime and maximizing productivity in industrial settings.

Universal Compatibility and Robust Construction

Compatible with a wide range of textile receiving mechanisms, the unit features a sturdy alloy steel core, four mounting holes, and bolt-on installation. Its resilience to corrosion and high tensile strength up to 900 MPa make it ideal for environments subject to rigorous wear and tear, providing superior durability over extended periods.

Effortless Maintenance and Extended Lifetime

Minimal maintenance requirements mean less operational interruption and reduced overhead costs. The combination of high hardness (HRC 55-62), excellent thermal conductivity, and resistance to high-speed wear ensures prolonged performance, granting peace of mind to operators and minimizing the need for frequent replacements.

FAQs of Receiving Unit:

Q: How is the Receiving Unit installed in textile spinning machines?

A: The Receiving Unit is designed with a bolt-on mounting type and four holes, making installation straightforward. Users simply align the unit with the designated position on the textile machine and secure it using bolts, ensuring a firm fit and reliable operation.

Q: What makes this Receiving Unit compatible with various textile receiving mechanisms?

A: Its universal design, standard size, and metric thread type enable seamless integration with most textile spinning machines. The precision CNC machining ensures that the component fits accurately in different setups, allowing for broad applicability across industrial textile environments.

Q: When should the Receiving Unit be replaced or maintained?

A: Due to its high wear resistance and minimal maintenance requirements, scheduled inspections during routine machine servicing are generally sufficient. Replacement is recommended only if significant wear or damage is noticed, which is infrequent given its extended service life and durability.

Q: Where can the Receiving Unit be purchased in India?

A: The Receiving Unit is available through authorized importers and suppliers across India. It is packaged securely in boxes to prevent damage during transit, ensuring it reaches industrial clients in optimal condition.

Q: What is the process for integrating this component into textile machine operations?

A: After receiving the unit, technicians should connect it using the bolt-on method and verify its secure alignment. Once installed, the machine can be operated under standard conditions, with the component handling speeds up to 3000 RPM and performing efficiently within -10C to +80C.

Q: How does the Receiving Unit enhance the performance and longevity of textile machines?

A: Engineered for heavy-duty use, the units high-grade alloy steel construction, corrosion resistance, and precision surface finish reduce friction and operational noise. Its high tensile strength and hardness extend the machines lifetime, allowing for consistent, uninterrupted textile production.

Q: What are the primary benefits of using this Receiving Unit in industrial textiles?

A: Benefits include reduced maintenance downtime, reliable operation in harsh environments, compatibility with various systems, and long-term savings due to its extended service life and robust construction, all contributing to efficient and cost-effective textile manufacturing.
